Operation: I use a piece of wire 51 feet long for my long wire, and a piece 16 feet long for the

counter poise. Connect the tuner to your transmitter by using a BNC jumper. Connect the long

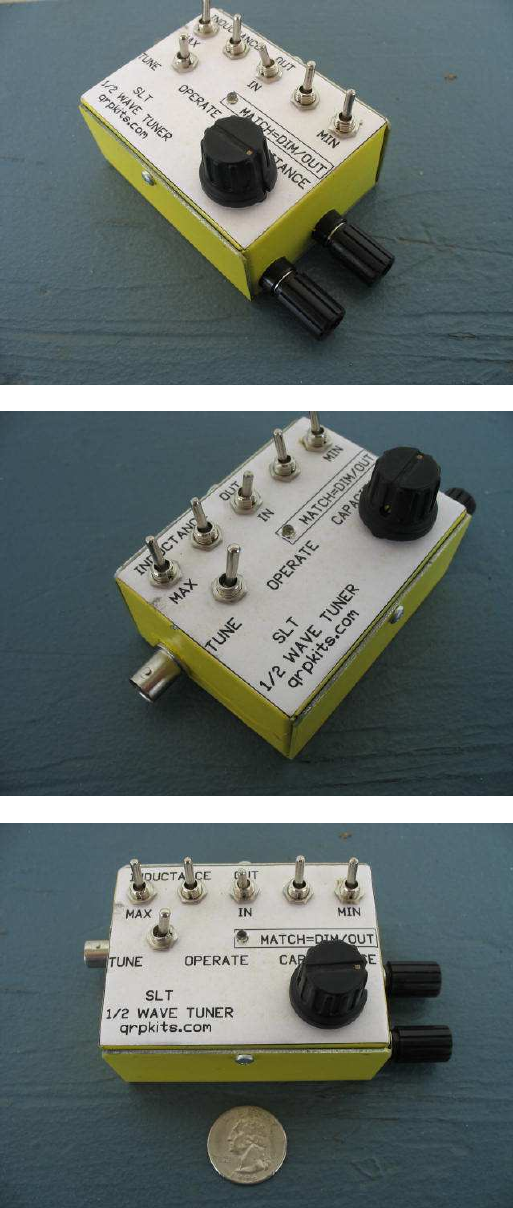

wire to the binding post in the middle of the case or the upper one in the picture above. Connect

the counter poise to the bottom 5 Way post. You want to use as little inductance as possible to get
